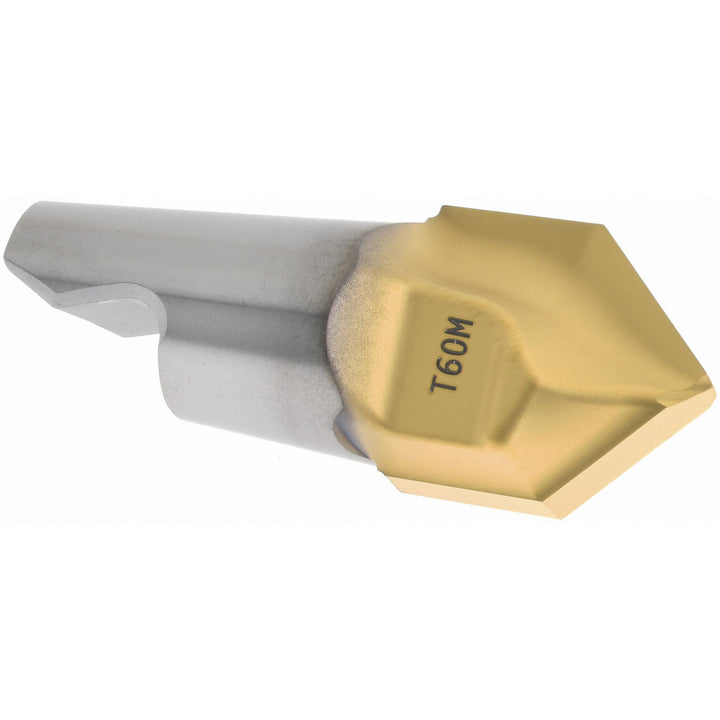

Carbide Insert, Grade T60M, TiAlN - Seco 74004538

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74004538

MFR# 74004538Series MM16

$189.63
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74004538 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45
ChipbreakerM06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3390
Cutting diameter0.6300
Cutting width0.63
Extension from holder in0.7560
Functional length0.7560
Included angle degree90
Insert handRight Hand
Insert size0.630-C90
Lead angle45
Length of cut0.2960
Manufacturers catalog number74004538
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.2960
Milling tip full descriptionMM16-0.630-C90-M06
Milling tip styleMM16
Milling tip typeChamfer
Number of flutes2
Overall length0.756
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
