Seco

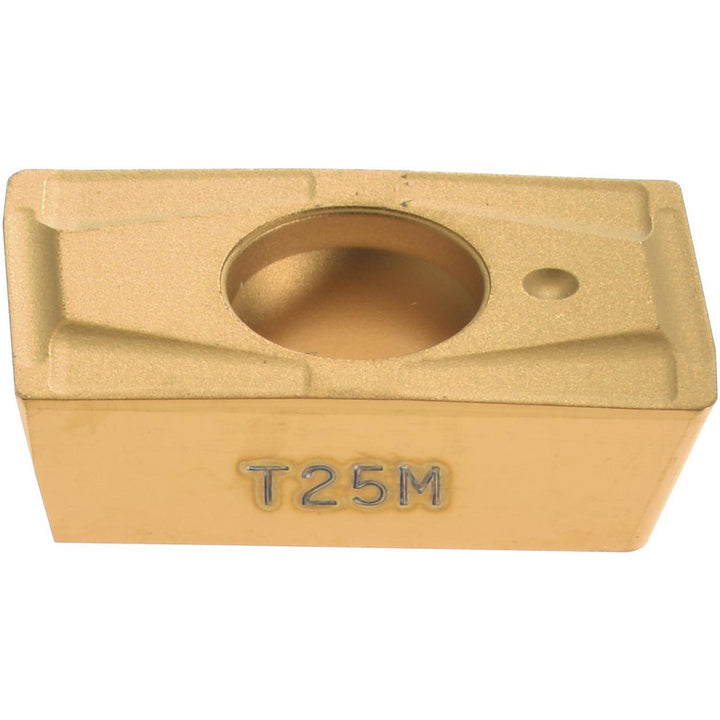

APFT1604PDTL-D15 Solid Carbide Insert, Grade T25M, TiCN - Seco 74004967
MFR# 74004967ISO/ANSI# APFT1604PDTL-D15Cat# APFT1604PDTL-D15Series APFT-16
$34.19List $43.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74004967 is a APFT1604PDTL-D15 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeAPFT1604PDTL-D15
Chip breakerD15
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPFT
Iso codeAPFT1604PDTL-D15
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPFT1604PDTL-D15
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle8
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in3/8
