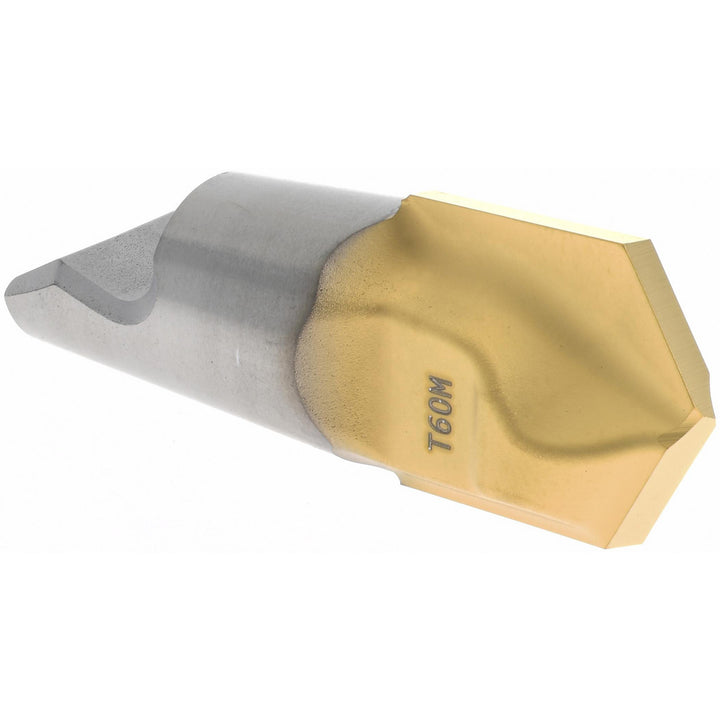

Carbide Insert, Grade T60M, TiAlN - Seco 74004991

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74004991

MFR# 74004991Series MM16

$189.63
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74004991 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle60
ChipbreakerM06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.4610
Cutting diameter0.6300
Cutting width0.63
Extension from holder in0.7440
Functional length0.7440
Included angle degree120
Insert handRight Hand
Insert size0.630-C120
Lead angle60
Length of cut0.1690
Manufacturers catalog number74004991
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1690
Milling tip full descriptionMM16-0.630-C120-M06
Milling tip styleMM16
Milling tip typeChamfer
Number of flutes2
Overall length0.744
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
