Seco

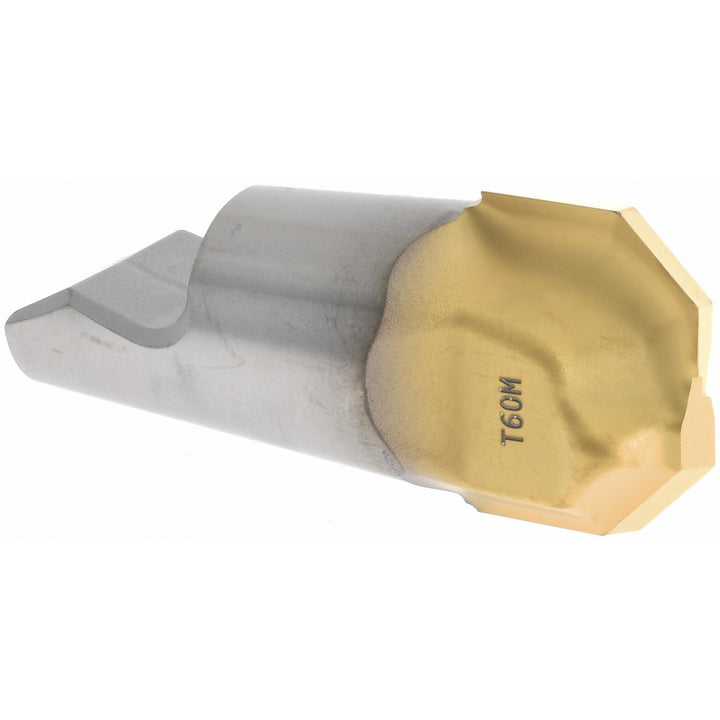

Carbide Insert, Grade T60M, TiAlN - Seco 74004992
MFR# 74004992Series MM16
$189.63
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN
Description
The Seco 74004992 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle45
ChipbreakerE06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2760
Cutting diameter0.3030
Cutting width0.63
Extension from holder in0.5220
Functional length0.5220
Included angle degree90
Insert handRight Hand
Insert size0.630-45.16
Lead angle45
Length of cut0.1540
Manufacturers catalog number74004992
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1540
Milling tip full descriptionMM16-0.630-45.16-E06
Milling tip styleMM16
Milling tip typeChamfer
Number of flutes2
Overall length0.522
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
