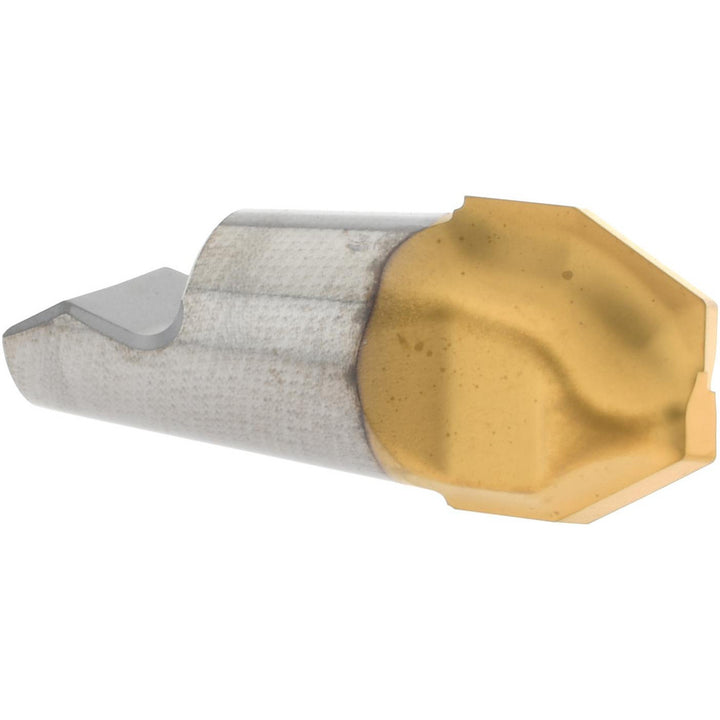

Carbide Insert, Grade T60M, TiAlN - Seco 74004993

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74004993

MFR# 74004993Series MM10

$97.87
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74004993 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle30
ChipbreakerE03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.2060
Cutting width0.394
Extension from holder in0.3770
Functional length0.3780
Included angle degree120
Insert handRight Hand
Insert size0.394-60.16
Lead angle60
Length of cut0.1570
Manufacturers catalog number74004993
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1570
Milling tip full descriptionMM10-0.394-60.16-E03
Milling tip styleMM10
Milling tip typeChamfer
Number of flutes2
Overall length0.378
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
