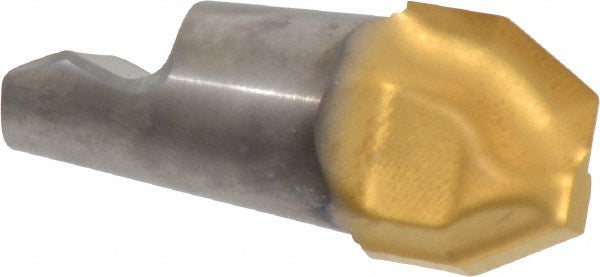

Carbide Insert, Grade T60M, TiAlN - Seco 74004994

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74004994

MFR# 74004994Series MM16

$189.63
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74004994 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle30degree
ChipbreakerE06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2320
Cutting diameter0.3300
Cutting width0.6300in
Extension from holder in0.6030
Functional length0.6020
Included angle degree120
Insert handRight Hand
Insert size0.630-60.26
Lead angle60
Length of cut0.2640in
Manufacturers catalog number74004994
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.2640
Milling tip full descriptionMM16-0.630-60.26-E06
Milling tip styleMM16
Milling tip typeChamfer
Number of flutes2
Overall length0.6020in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
