Seco

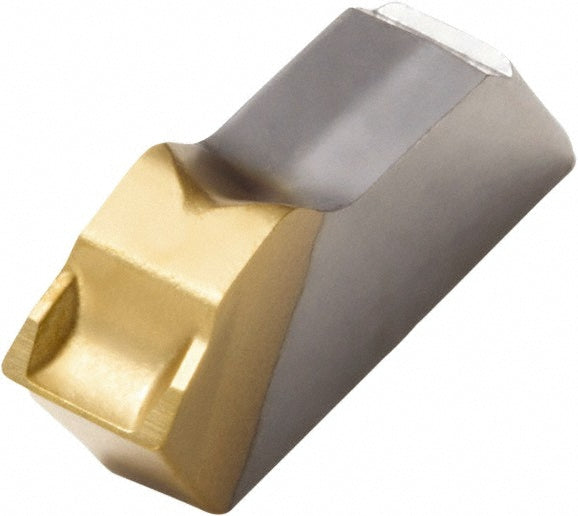

Solid Carbide Insert, Grade T25M, TiC - Seco 74005316
MFR# 74005316Series 150.10
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT25M
MaterialSolid Carbide
CoatingTiC
Description
The Seco 74005316 is a solid carbide indexable insert, grade T25M, TiC coated. Suited for universal.
Specifications
Chipbreaker12
Coating finishTiC
Coating processCVD
Corner radius0.0100
Cutting tool applicationParting
Cutting width0.2000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code5
Lead angle0
Lead angle directionNeutral
Manufacturer gradeT25M
Material gradeC5
Multi use toolYes
Overall length0.3540
Primary workpiece materialUniversal
Single or double endSingle
