Seco

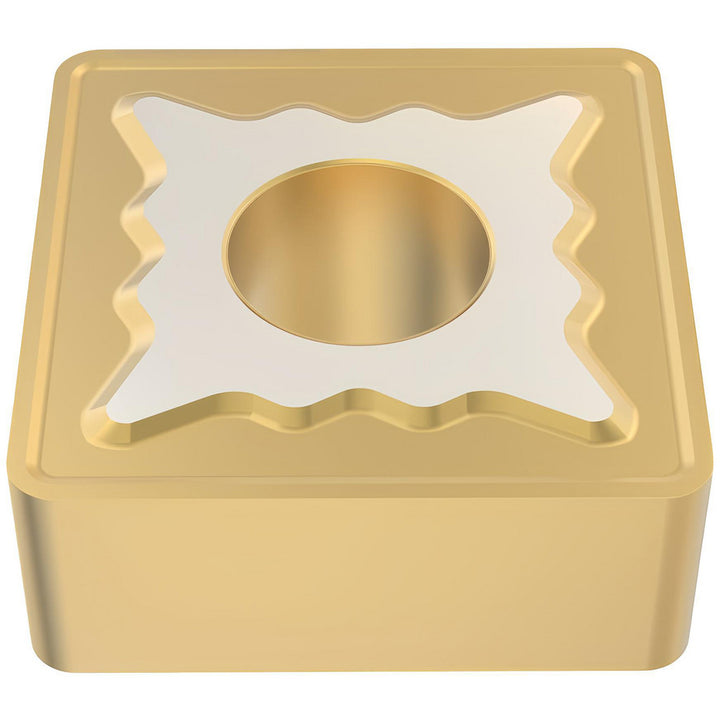

SNMG150612-MR7 Carbide Insert, Grade TP40, TiC - Seco 74005616
MFR# 74005616ISO/ANSI# SNMG150612Series SNMG-MR7
$26.61List $34.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74005616 is a SNMG150612-MR7 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeSNMG543
Ansi size code543
Chip breakerMR7
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - High Toughness; Hardened Materials (H) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle90
Industry standard numberSNMG543-MR7
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in5/8
Insert materialCarbide
Insert shapeS - Square
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612-MR7
Iso insert codeSNMG150612
Iso size code150612
Lead angle90
Length range0.6000 - 0.6500
Manufacturers catalog number74005616
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.5787
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
