Seco

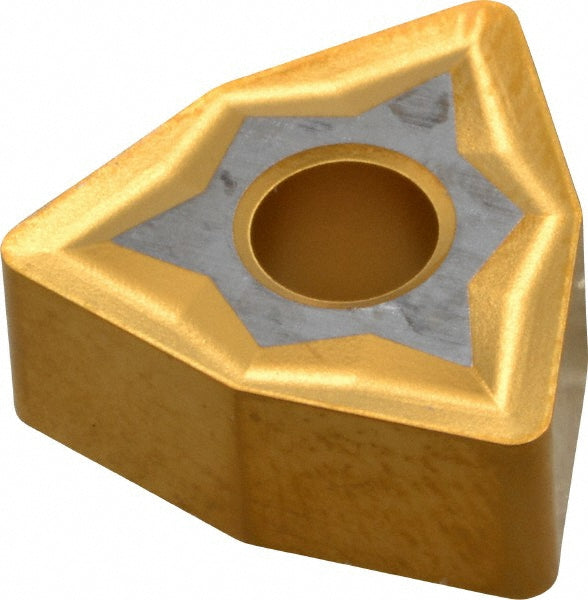

WNMG060408-M3 Carbide Insert, Grade TP40, TiC - Seco 74008868
MFR# 74008868ISO/ANSI# WNMG332-M3(O)Series WNMG-M3
$16.68List $21.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74008868 is a WNMG060408-M3 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-M3(O)
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-M3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number74008868
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
