Seco

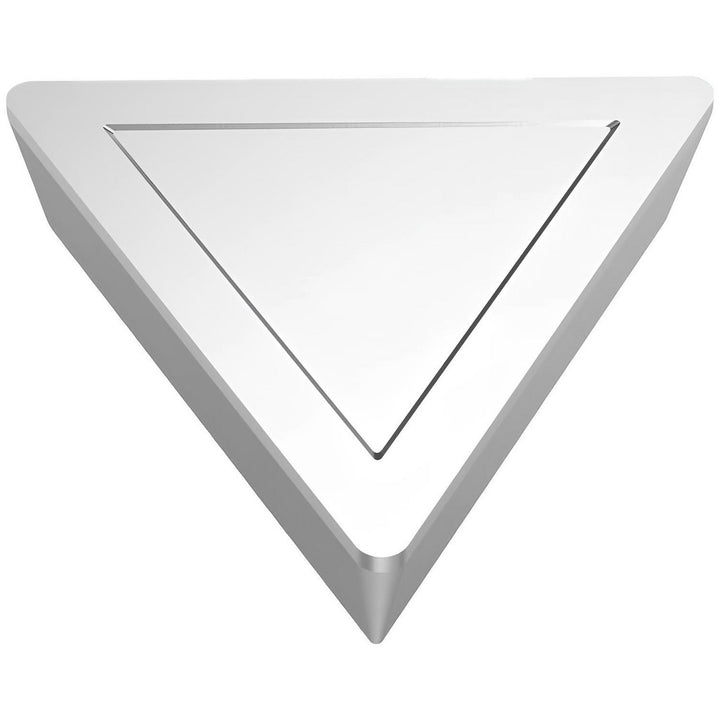

TPUN160308 Carbide Insert, Grade HX - Seco 74010718
MFR# 74010718ISO/ANSI# TPU322Series TPU-Flat Top
$12.14List $15.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeHX
MaterialCarbide
Description
The Seco 74010718 is a TPUN160308 carbide indexable insert, grade HX. Suited for superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPU322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPU
Insert thickness in1/8
Iso codeTPUN160308
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number74010718
Manufacturer gradeHX
Material gradeS10; S20; S25
Maximum depth of cut0.6181
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeU
Width0.6496in
Wiper edgeNo
