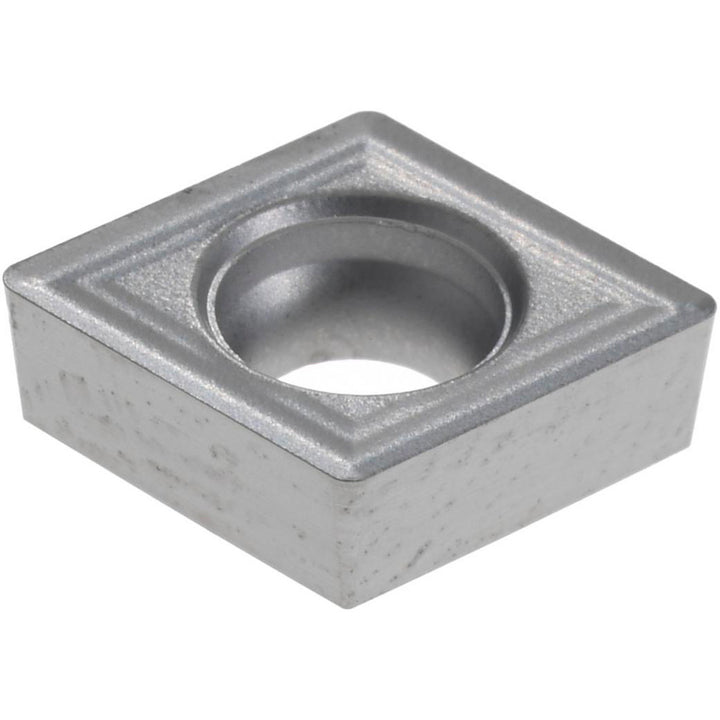

CCMT060204-F2 Carbide Insert, Grade HX - Seco 74011732

Seco

CCMT060204-F2 Carbide Insert, Grade HX - Seco 74011732

MFR# 74011732ISO/ANSI# CCMT060204Series CCMT-F2

$9.94List $12.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeHX
MaterialCarbide

Description

The Seco 74011732 is a CCMT060204-F2 carbide indexable insert, grade HX. Suited for superalloys & titanium.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerF2
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.51-F2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-F2
Iso insert codeCCMT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number74011732
Manufacturer gradeHX
Material gradeS10; S20; S25
Maximum depth of cut0.2402
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
