CCMT09T308-F2 Carbide Insert, Grade HX - Seco 74011755

Seco

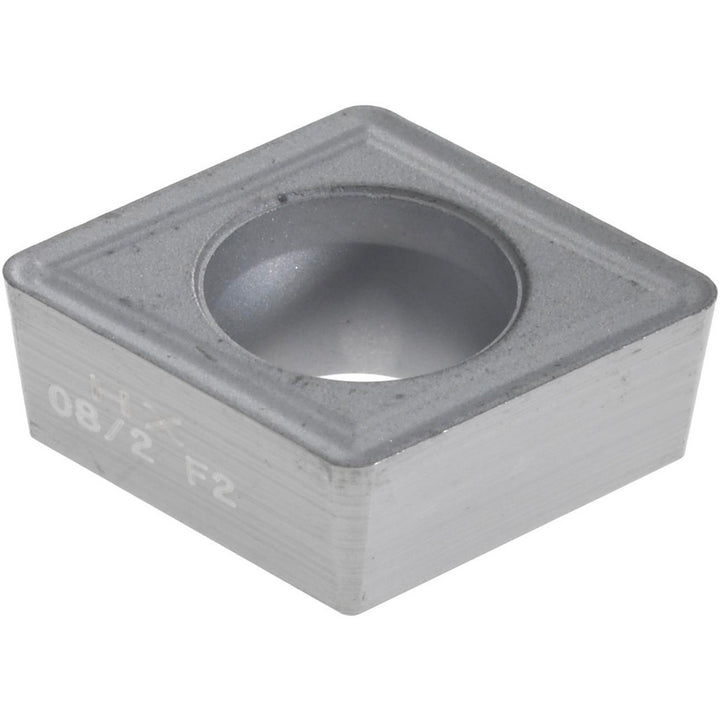

CCMT09T308-F2 Carbide Insert, Grade HX - Seco 74011755

MFR# 74011755ISO/ANSI# CCMT09T308Series CCMT-F2

$11.54List $14.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeHX
MaterialCarbide

Description

The Seco 74011755 is a CCMT09T308-F2 carbide indexable insert, grade HX. Suited for superalloys & titanium.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerF2
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCCMT32.52-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-F2
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number74011755
Manufacturer gradeHX
Material gradeS10; S20; S25
Maximum depth of cut0.3504
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
