Seco

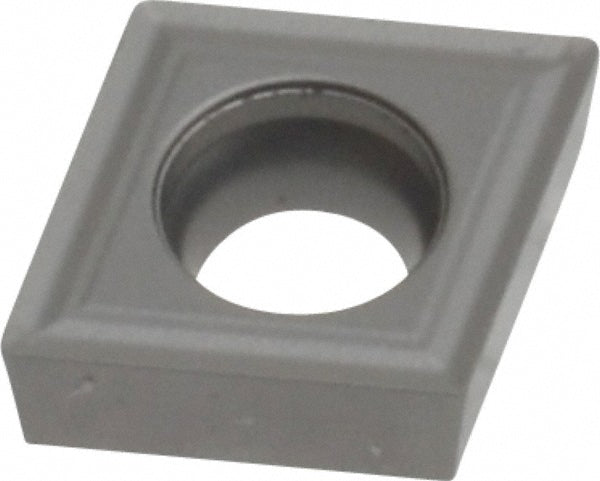

CCMT060202-F2 Carbide Insert, Grade HX - Seco 74011802
MFR# 74011802ISO/ANSI# CCMT21.50.5-F2Series CCMT-F2
$11.29List $14.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeHX
MaterialCarbide
Description
The Seco 74011802 is a CCMT060202-F2 carbide indexable insert, grade HX. Suited for superalloys & titanium.
Specifications
Chip breakerF2
Clearance codeC
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.50.5-F2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202-F2
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number74011802
Manufacturer gradeHX
Material gradeS10; S20; S25
Maximum depth of cut0.2461
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
