Seco

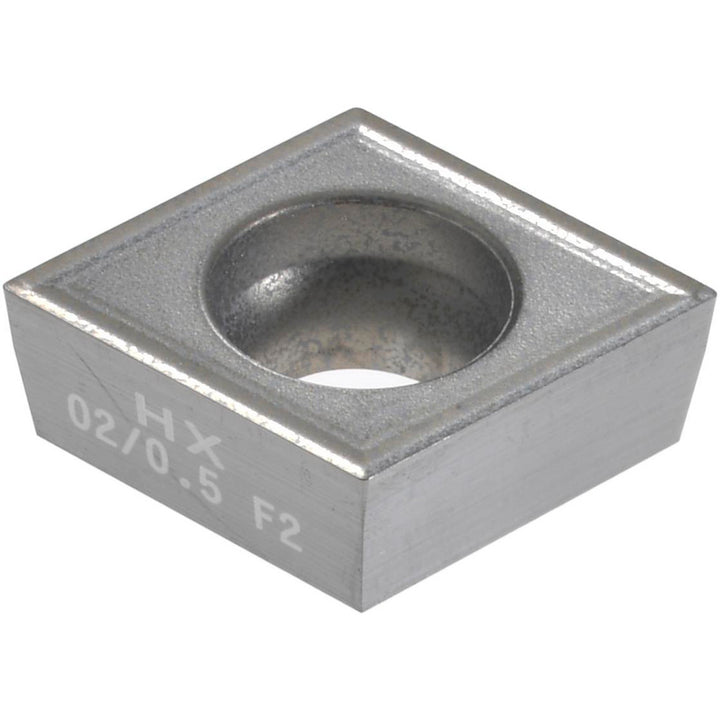

CCMT09T302-F2 Carbide Insert, Grade HX - Seco 74011987
MFR# 74011987ISO/ANSI# CCMT09T302Series CCMT-F2
$13.13List $16.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeHX
MaterialCarbide
Description
The Seco 74011987 is a CCMT09T302-F2 carbide indexable insert, grade HX. Suited for superalloys & titanium.
Specifications
Ansi insert codeCCMT32.50.5
Ansi size code32.50.5
Chip breakerF2
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to High Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCCMT32.50.5-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.50.5
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302-F2
Iso insert codeCCMT09T302
Iso size code09T302
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number74011987
Manufacturer gradeHX
Material gradeS10; S20; S25
Maximum depth of cut0.3740
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
