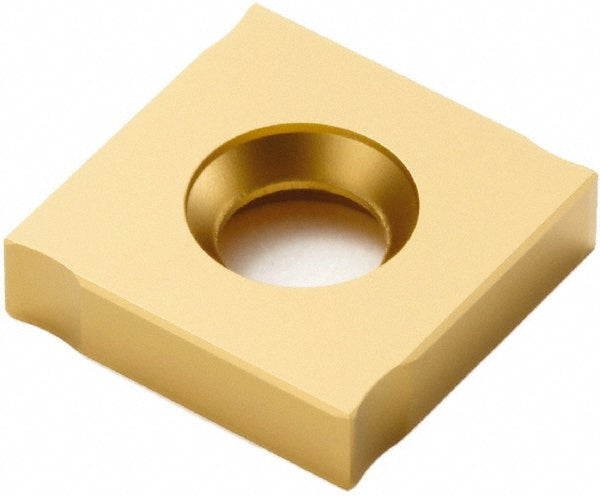

335.19-1103T-MD09 Solid Carbide Insert, Grade T25M, TiCN - Seco 74015255

Seco

335.19-1103T-MD09 Solid Carbide Insert, Grade T25M, TiCN - Seco 74015255

MFR# 74015255ISO/ANSI# 335.19-1103T-MD09Cat# 335.19-1103T-MD09Series 335.19-11

$36.63List $46.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74015255 is a 335.19-1103T-MD09 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi code335.19-1103T-MD09
Chip breakerMD09
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibility335.19
Cutting edge effective length0.1063
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code1103
Insert style335.19
Iso code335.19-1103T-MD09
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog number335.19-1103T-MD09
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.1063
Thickness range0.1000 to 0.1250
Width0.4331
