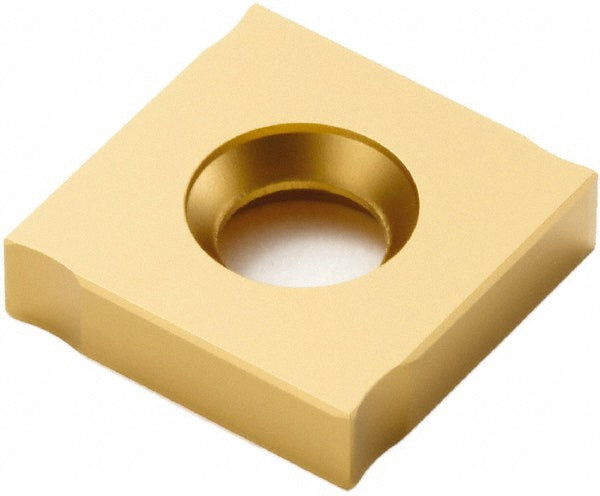

335.19-1205T-MD09 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016055

Seco

335.19-1205T-MD09 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016055

MFR# 74016055ISO/ANSI# 335.19-1205T-MD09Cat# 335.19-1205T-MD09Series 335.19-12

$43.28List $55.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74016055 is a 335.19-1205T-MD09 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi code335.19-1205T-MD09
Chip breakerMD09
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibility335.19
Cutting edge effective length0.2126
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert style335.19
Iso code335.19-1205T-MD09
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number335.19-1205T-MD09
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.2126
Thickness range0.2000 to 0.2200
Width in1/2
