Seco

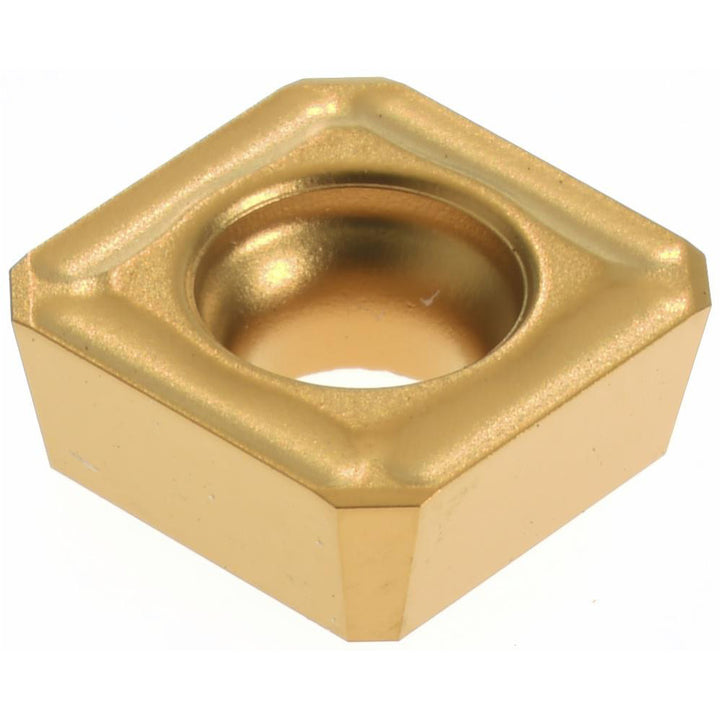

SPMX0602AP-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016162
MFR# 74016162ISO/ANSI# SPMX0602AP-75Cat# SPMX0602AP-75Series SPMX-06
$18.78List $24.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74016162 is a SPMX0602AP-75 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeSPMX0602AP-75
Chip breaker75
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityR215.49-3; R335.16-3
Cutting edge effective length0.2500
Cutting edge styleT-Land
Hole diameter0.1024
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code0602
Insert styleSPMX
Iso codeSPMX0602AP-75
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberSPMX0602AP-75
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges4
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
