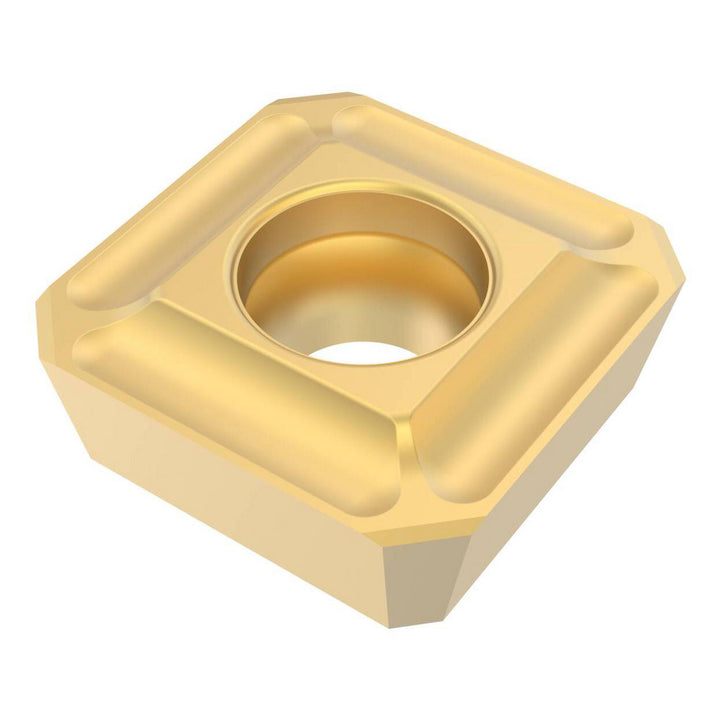

SPMX12T3AP-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016176

Seco

SPMX12T3AP-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016176

MFR# 74016176ISO/ANSI# SPMX12T3AP-75Cat# SPMX12T3AP-75Series SPMX-12

$26.44List $33.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74016176 is a SPMX12T3AP-75 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeSPMX12T3AP-75
Chip breaker75
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityR215.49-3; R220.69; R417.19-3
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1496
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleSPMX
Iso codeSPMX12T3AP-75
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMX12T3AP-75
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
