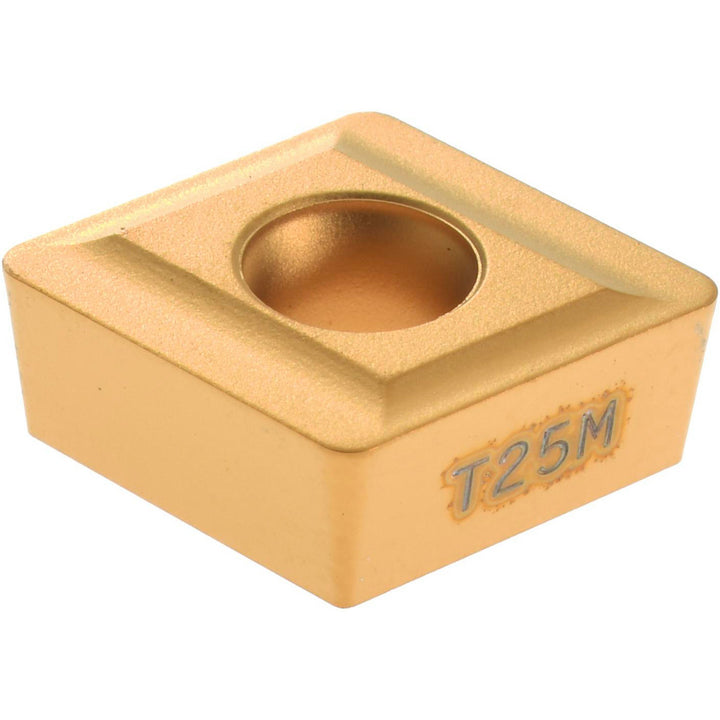

CCMX09T308T-MD09 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016188

Seco

CCMX09T308T-MD09 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016188

MFR# 74016188ISO/ANSI# CCMX09T308T-MD09Cat# CCMX09T308T-MD09Series CCMX-09

$26.02List $33.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74016188 is a CCMX09T308T-MD09 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeCCMX09T308T-MD09
Chip breakerMD09
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR216.19-09
Cutting edge effective length0.3750
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree80
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size09
Insert size code09T308
Insert styleCCMX
Iso codeCCMX09T308T-MD09
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberCCMX09T308T-MD09
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges2
RakeNeutral
Rake angle0
Relief angle7.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeDiamond
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
