Seco

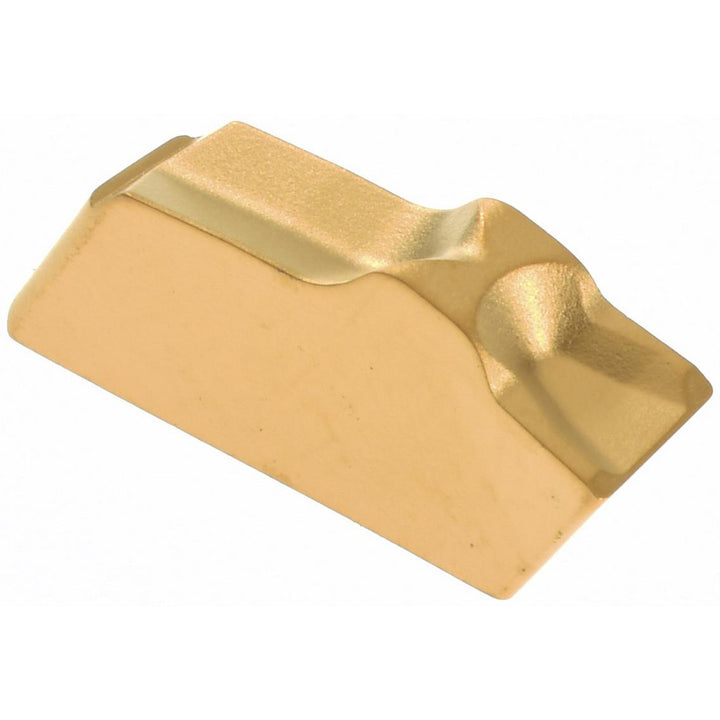

Carbide Insert, Grade T25M, TiC/TiCN/TiN - Seco 74016518
MFR# 74016518Series 150.10
$21.82List $27.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT25M
MaterialCarbide
CoatingTiC/TiCN/TiN
Description
The Seco 74016518 is a carbide indexable insert, grade T25M, TiC/TiCN/TiN coated. Suited for universal.
Specifications
Chipbreaker16
Coating finishTiC/TiCN/TiN
Coating processCVD
Corner radius in1/128
Cutting tool applicationCut-off
Cutting width0.1220
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code3
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeT25M
Material gradeC5
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Relief angle6.00
Single or double endSingle
Width tolerance0.003
