Seco

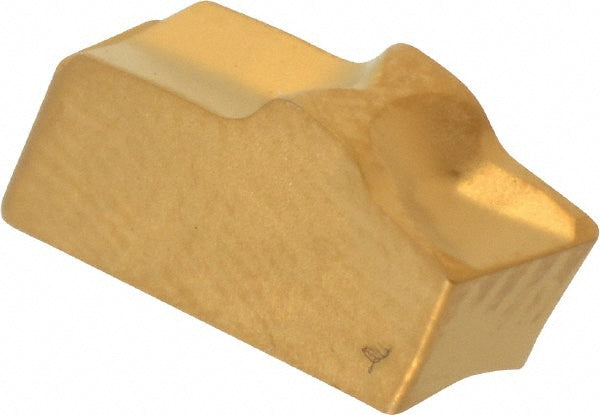

Solid Carbide Insert, Grade T25M, TiC - Seco 74016527
MFR# 74016527Series 150.10
$21.82List $27.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT25M
MaterialSolid Carbide
CoatingTiC
Description
The Seco 74016527 is a solid carbide indexable insert, grade T25M, TiC coated. Suited for universal.
Specifications
Chipbreaker16
Coating finishTiC
Coating processCVD
Corner radius0.0080
Cutting tool applicationCut-off
Cutting width0.1220
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Lead angle6
Lead angle directionLeft Hand
Manufacturer gradeT25M
Material gradeC5
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Relief angle6.00
Single or double endSingle
Width tolerance0.003
