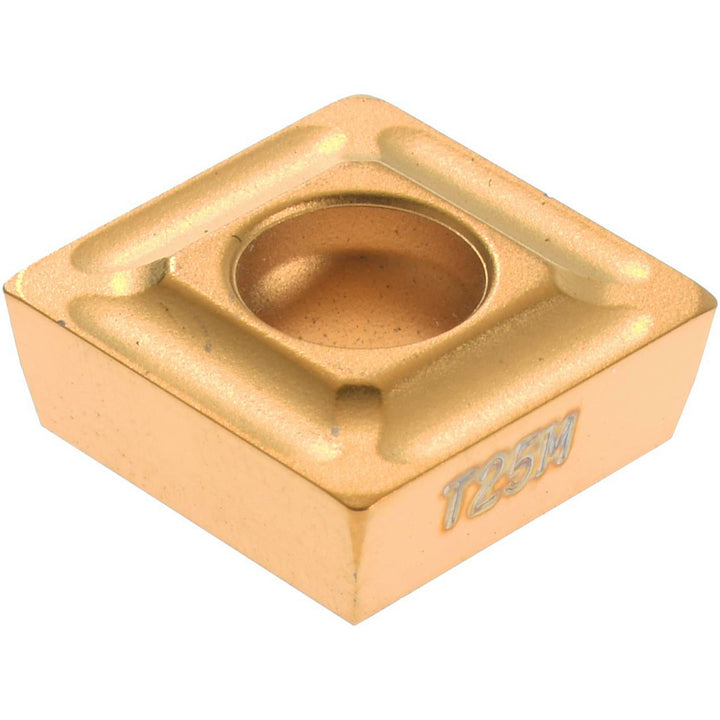

SPMX090304-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016731

Seco

SPMX090304-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016731

MFR# 74016731ISO/ANSI# SPMX090304-75Cat# SPMX090304-75Series SPMX-09

$20.70List $26.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74016731 is a SPMX090304-75 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeSPMX090304-75
Chip breaker75
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR215.39; R215.49-3; R417.19-3
Cutting edge effective length0.3750
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090304
Insert styleSPMX
Iso codeSPMX090304-75
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSPMX090304-75
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle16
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
