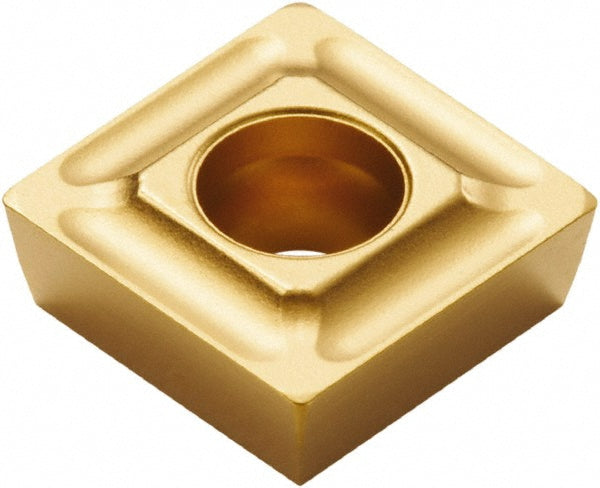

SPMX070304-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016732

Seco

SPMX070304-75 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016732

MFR# 74016732ISO/ANSI# SPMX070304-75Cat# SPMX070304-75Series SPMX-07

$19.85List $25.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/16
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74016732 is a SPMX070304-75 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeSPMX070304-75
Chip breaker75
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR218.19-3; R417.19-3; R218.19
Cutting edge effective length0.3126
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in5/16
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code070304
Insert styleSPMX
Iso codeSPMX070304-75
Length in5/16
Length range0.0000 to 0.3200
Manufacturers catalog numberSPMX070304-75
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3126
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle16
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in5/16
