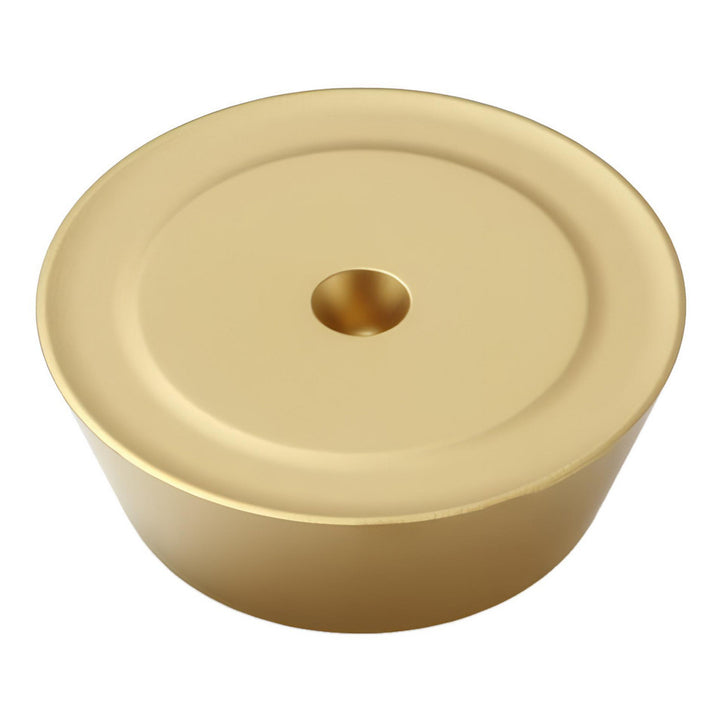

REHR1605M0T-M14 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016758

Seco

REHR1605M0T-M14 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016758

MFR# 74016758ISO/ANSI# REHR1605M0T-M14Cat# REHR1605M0T-M14Series REHR-16

$33.93List $43.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74016758 is a REHR1605M0T-M14 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeREHR1605M0T-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius0.3150
Cutting edge effective length0.3150
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1605
Insert styleREHR
Iso codeREHR1605M0T-M14
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberREHR1605M0T-M14
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
RakeNeutral
Rake angle0
Relief angle20.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6299
