Seco

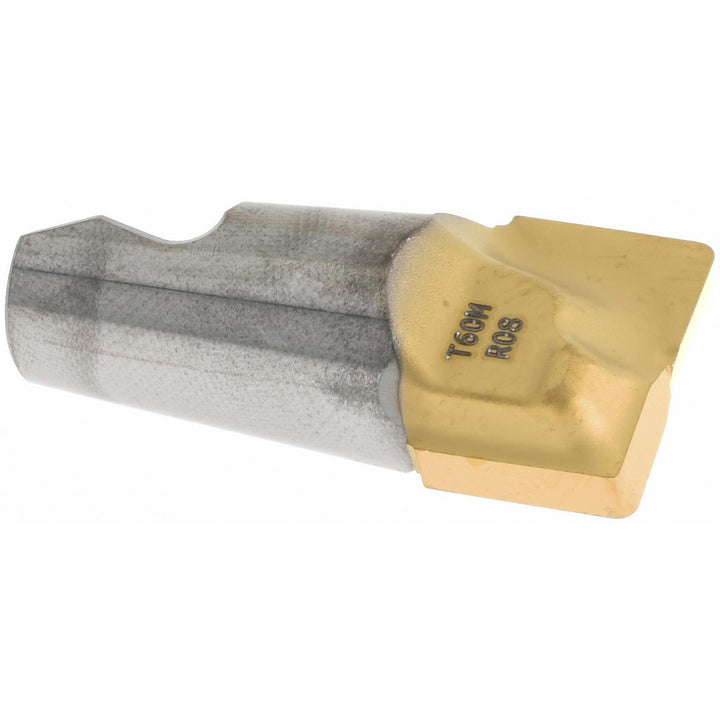

Carbide Insert, Grade T60M, TiAlN - Seco 74017031
MFR# 74017031Series MM12
$135.31
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN
Description
The Seco 74017031 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0
ChipbreakerMD05
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0310
Cutting diameter0.4720
Cutting width0.472
Extension from holder in0.4010
Functional length0.4010
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.472-R2
Lead angle90
Length of cut0.3230
Manufacturers catalog number74017031
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.3230
Milling tip full descriptionMM12-0.472-R2-MD05
Milling tip styleMM12
Milling tip typeSlotting
Number of flutes2
Overall length0.401
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
