Seco

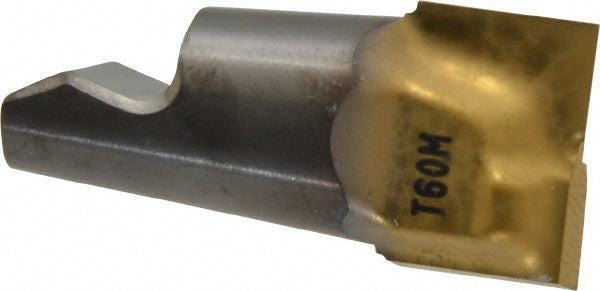

Carbide Insert, Grade T60M, TiAlN - Seco 74017035
MFR# 74017035Series MM16
$209.62
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN
Description
The Seco 74017035 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerM06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.6300
Cutting width0.6300in
Extension from holder in0.5350
Functional length0.5350
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.630
Lead angle90
Length of cut0.4330in
Manufacturers catalog number74017035
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.4330
Milling tip full descriptionMM16-0.630-M06
Milling tip styleMM16
Milling tip typeSlotting
Number of flutes2
Overall length0.5350in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
