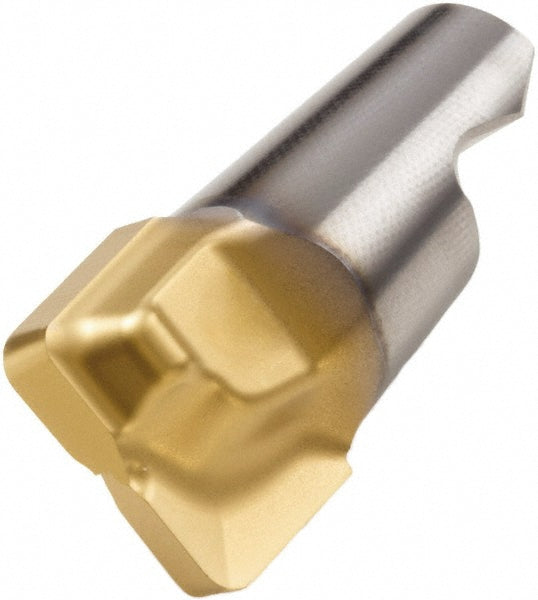

Carbide Insert, Grade T60M, TiAlN - Seco 74017037

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74017037

MFR# 74017037Series MM16

$172.19
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74017037 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerMD07
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0310
Cutting diameter0.6300
Cutting width0.6300in
Extension from holder in0.5350
Functional length0.5350
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.630-R2
Lead angle90
Length of cut0.4330in
Manufacturers catalog number74017037
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.4330
Milling tip full descriptionMM16-0.630-R2-MD07
Milling tip styleMM16
Milling tip typeSlotting
Number of flutes2
Overall length0.5350in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
