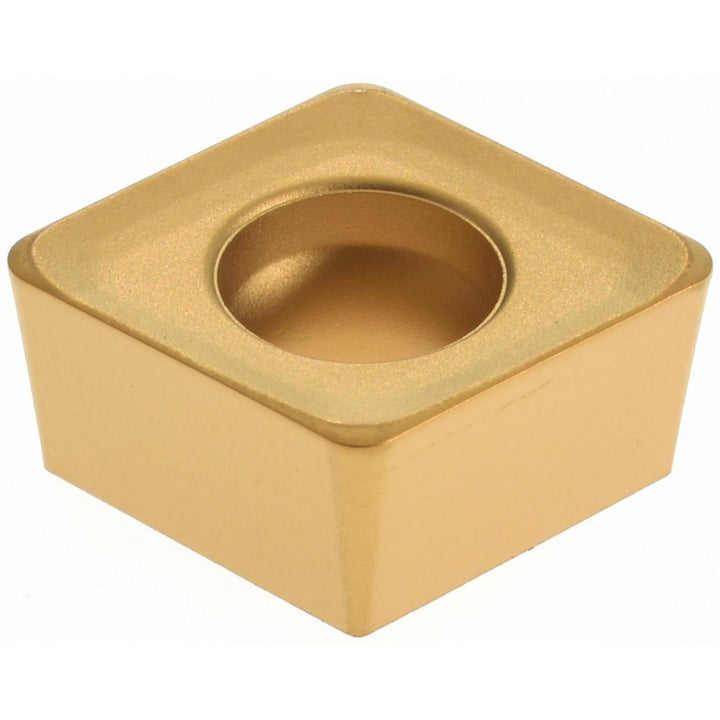

CCMX08T308T-M08 Solid Carbide Insert, Grade T25M, TiCN - Seco 74017040

Seco

CCMX08T308T-M08 Solid Carbide Insert, Grade T25M, TiCN - Seco 74017040

MFR# 74017040ISO/ANSI# CCMX08T308T-M08Cat# CCMX08T308T-M08Series CCMX-08

$25.44List $32.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74017040 is a CCMX08T308T-M08 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeCCMX08T308T-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR215.59-08
Cutting edge effective length0.3161
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree80
Inscribed circle0.3161
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size08
Insert size code08T308
Insert styleCCMX
Iso codeCCMX08T308T-M08
Length0.3161
Length range0.0000 to 0.3200
Manufacturers catalog numberCCMX08T308T-M08
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3161
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle15
Relief angle7.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeDiamond
Single or double sided insertSingle
StandardsISO
Thickness0.1732
Thickness range0.1500 to 0.1750
Width0.3161
