Seco

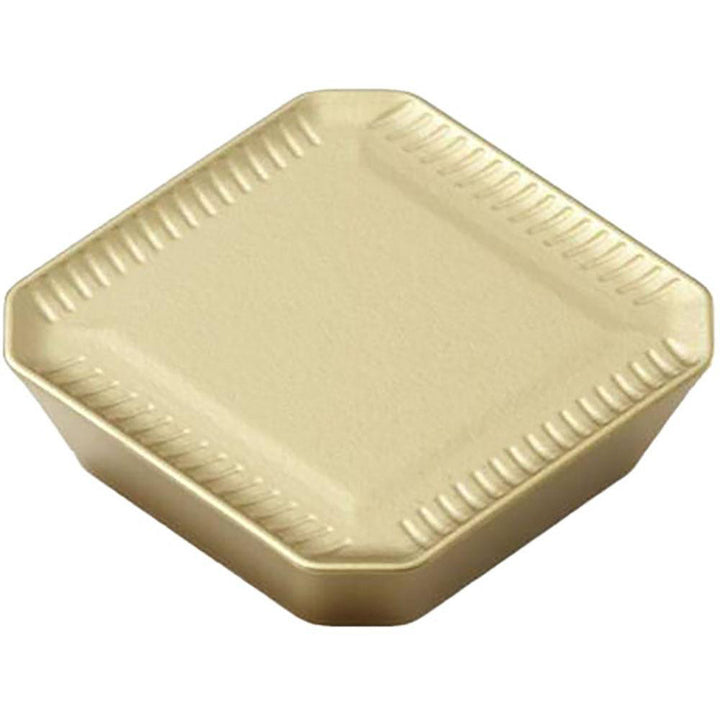

SEKR1203AFTN-ME13 Solid Carbide Insert, Grade T25M, TiCN - Seco 74017144
MFR# 74017144ISO/ANSI# SEKR1203AFTN-ME13Cat# SEKR1203AFTN-ME13Series SEKR-12
$22.32List $28.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74017144 is a SEKR1203AFTN-ME13 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeSEKR1203AFTN-ME13
Chip breakerME13
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR220.13-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1203
Insert styleSEKR
Iso codeSEKR1203AFTN-ME13
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR1203AFTN-ME13
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3465
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle25.5
Relief angle20
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
