Seco

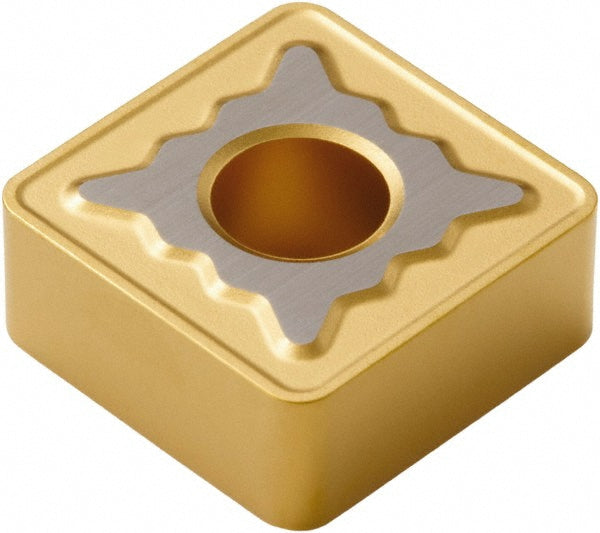

SNMG120408-MR7 Carbide Insert, Grade TP40, TiC - Seco 74017610
MFR# 74017610ISO/ANSI# SNMG432-MR7Series SNMG-MR7
$16.76List $21.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74017610 is a SNMG120408-MR7 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG432-MR7
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408-MR7
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number74017610
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.4685
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
