Seco

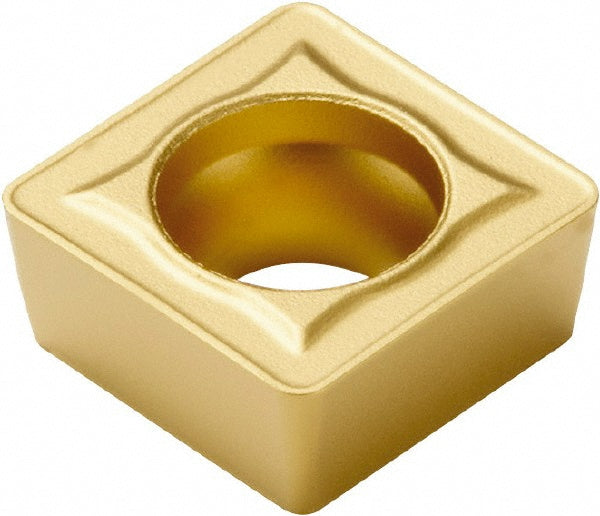

SCMT09T308-F2 Carbide Insert, Grade TP40, TiC - Seco 74017616
MFR# 74017616ISO/ANSI# SCMT32.52-F2Series SCMT-F2
$14.66List $18.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74017616 is a SCMT09T308-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF2
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle90
Industry standard numberSCMT32.52-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code32.52
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT09T308-F2
Lead angle90
Length range0.3000 - 0.4000
Manufacturers catalog number74017616
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.3425
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
