Seco

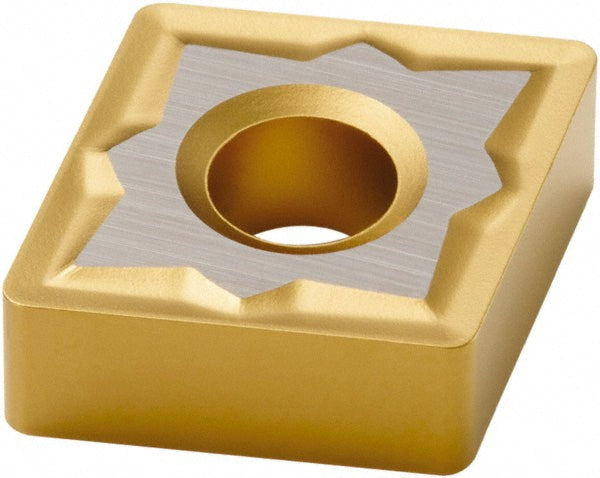

CNMG120408-M3(O) Carbide Insert, Grade TP40, TiC - Seco 74018470
MFR# 74018470ISO/ANSI# CNMG432-M3(O)Series CNMG-M3
$18.45List $23.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74018470 is a CNMG120408-M3(O) carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432-M3(O)
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-M3(O)
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number74018470
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
