Seco

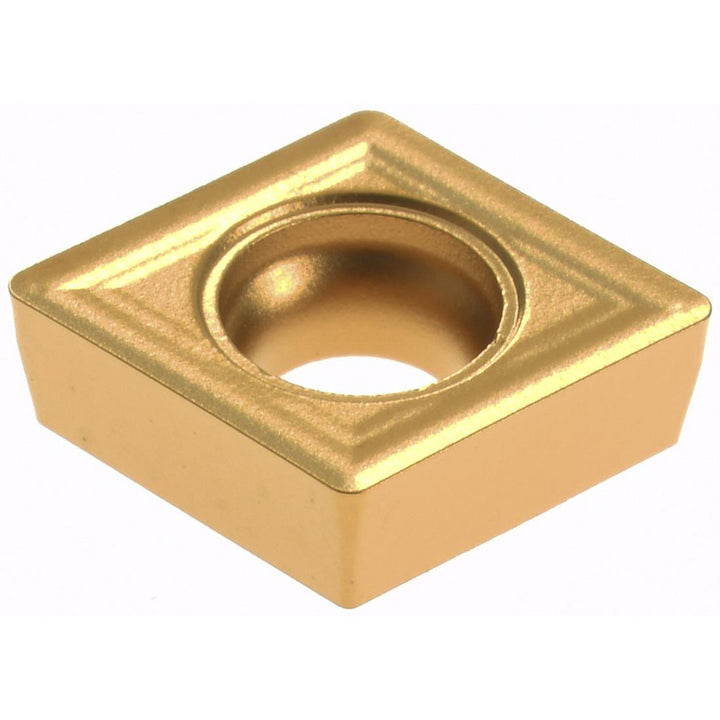

CCMT060204-F2 Carbide Insert, Grade TP40, TiC - Seco 74018652
MFR# 74018652ISO/ANSI# CCMT060204Series CCMT-F2
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74018652 is a CCMT060204-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerF2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - High Toughness; Hardened Materials (H) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.51-F2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-F2
Iso insert codeCCMT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number74018652
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.2402
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
