Seco

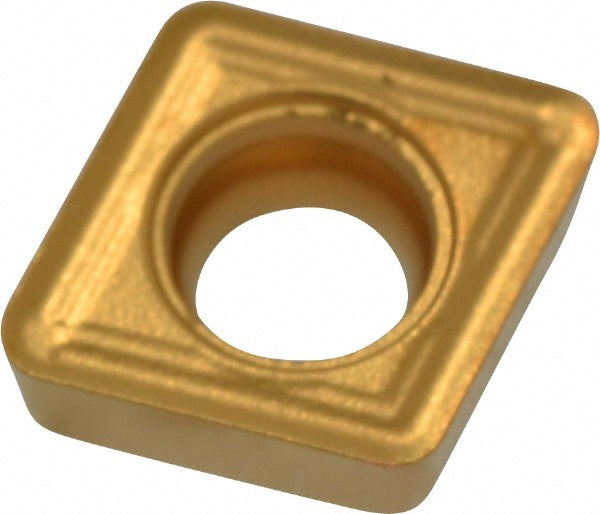

CCMT060208-F2 Carbide Insert, Grade TP40, TiC - Seco 74018654
MFR# 74018654ISO/ANSI# CCMT21.52-F2Series CCMT-F2
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74018654 is a CCMT060208-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF2
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.52-F2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-F2
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number74018654
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.2244
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
