Seco

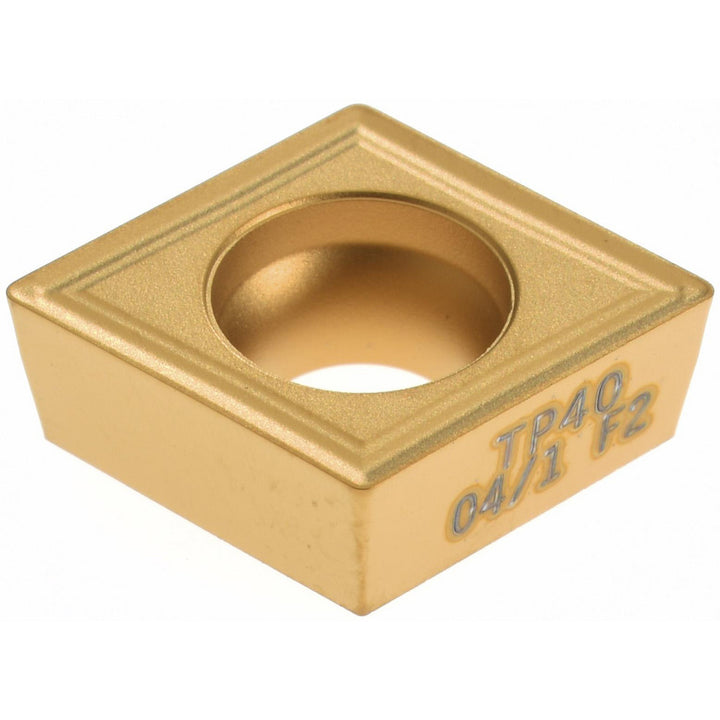

CCMT09T304-F2 Carbide Insert, Grade TP40, TiC - Seco 74018656
MFR# 74018656ISO/ANSI# CCMT09T304Series CCMT-F2
$14.66List $18.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74018656 is a CCMT09T304-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerF2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - High Toughness; Hardened Materials (H) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCCMT32.51-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-F2
Iso insert codeCCMT09T304
Iso size code09T304
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number74018656
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
