Seco

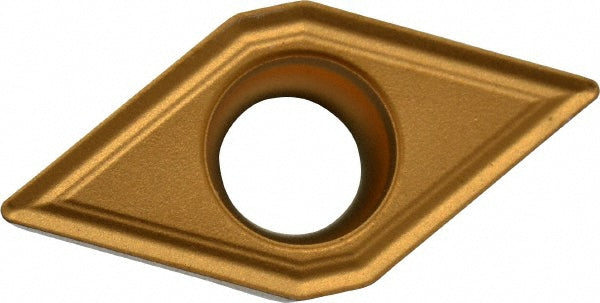

DCMT11T304-F2 Carbide Insert, Grade TP40, TiC - Seco 74018660
MFR# 74018660ISO/ANSI# DCMT32.51-F2Series DCMT-F2
$16.92List $21.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74018660 is a DCMT11T304-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF2
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number74018660
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
