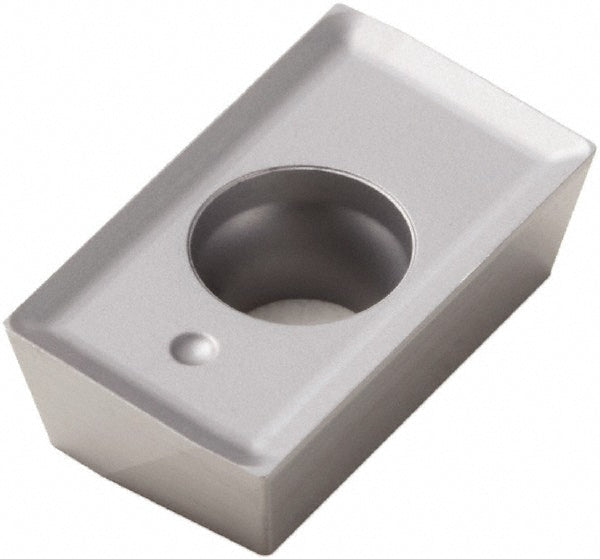

APKT1604PDR-E12 Solid Carbide Insert, Grade HX - Seco 74018810
MFR# 74018810ISO/ANSI# APKT1604PDR-E12Cat# APKT1604PDR-E12Series APKT-16
$25.85List $33.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeHX
MaterialSolid Carbide
Description
The Seco 74018810 is a APKT1604PDR-E12 solid carbide indexable insert, grade HX. Suited for non-ferrous metal.
Specifications
Ansi codeAPKT1604PDR-E12
Chip breakerE12
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKT
Iso codeAPKT1604PDR-E12
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPKT1604PDR-E12
Manufacturer gradeHX
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle22
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
