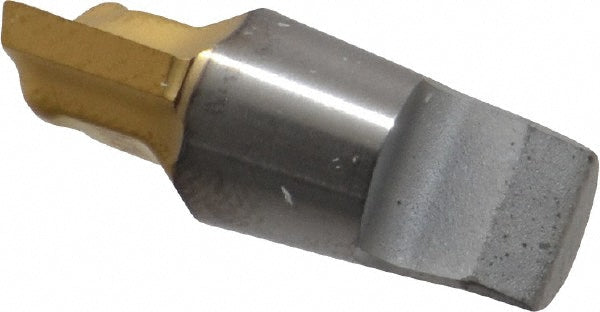

Carbide Insert, Grade T60M, TiAlN - Seco 74018865

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74018865

MFR# 74018865Series MM10

$88.93
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74018865 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder in0.3350
Functional length0.3350
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.394
Lead angle90
Length of cut0.2720in
Manufacturers catalog number74018865
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.2720
Milling tip full descriptionMM10-0.394-M03
Milling tip styleMM10
Milling tip typeSlotting
Number of flutes2
Overall length0.3350in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
