Seco

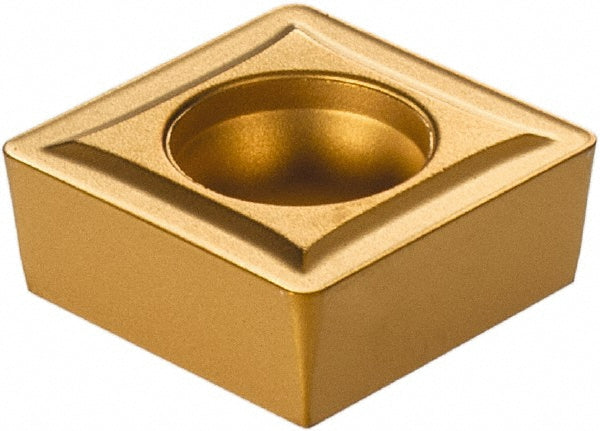

Square Solid Carbide Insert, Grade TP40, TiC - Seco 74019327
MFR# 74019327Series SCMT
$20.46List $26.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeTP40
MaterialSolid Carbide
CoatingTiC
Description
The Seco 74019327 is a solid carbide indexable insert, grade TP40, TiC coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerF2
Coating finishTiC
Coating processCVD
Hole diameter0.2200
Included angle90
Insert materialSolid Carbide
Insert shapeSquare
Insert size code120408
Insert styleSCMT
Manufacturer gradeTP40
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialCast Iron; Stainless Steel; Steel
Relief angle7
ShapeSquare
