Seco

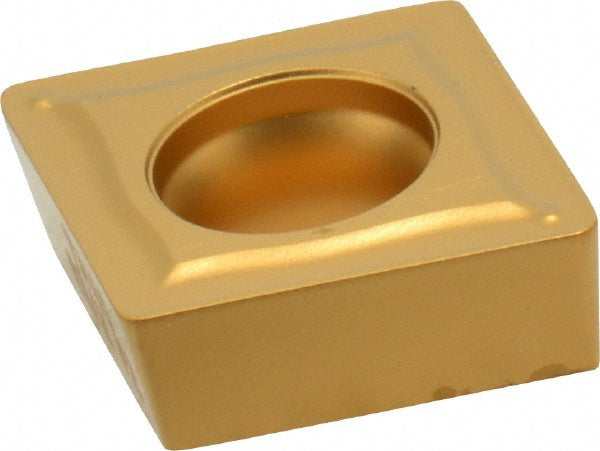

CCMT120408-F2 Carbide Insert, Grade TP40, TiC - Seco 74019531
MFR# 74019531ISO/ANSI# CCMT432-F2Series CCMT-F2
$20.46List $26.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 74019531 is a CCMT120408-F2 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerF2
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2205
Included angle80degree
Industry standard numberCCMT432-F2
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-F2
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number74019531
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
