Seco

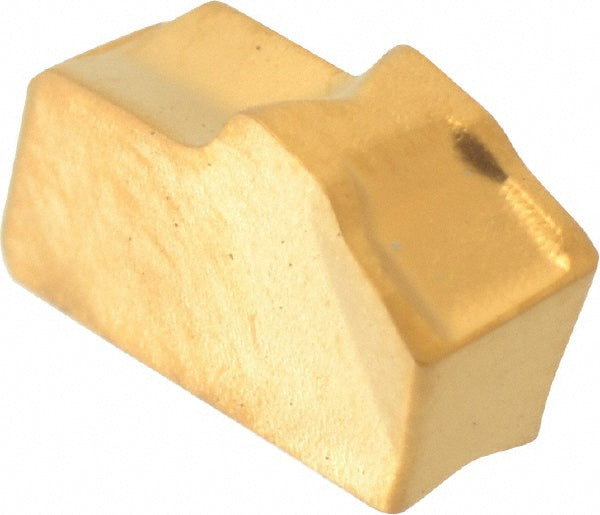

Solid Carbide Insert, Grade T25M, TiC - Seco 74024843
MFR# 74024843Series 150.10
$26.48List $33.37
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT25M
MaterialSolid Carbide
CoatingTiC
Description
The Seco 74024843 is a solid carbide indexable insert, grade T25M, TiC coated. Suited for universal.
Specifications
Chipbreaker12
Coating finishTiC
Coating processCVD
Corner radius0.0080
Cutting tool applicationCut-Off
Cutting width0.1220
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeT25M
Material gradeC5
Msc manufacturer number150.10-3R6-12
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Relief angle6.00
Single or double endSingle
Width tolerance0.003
