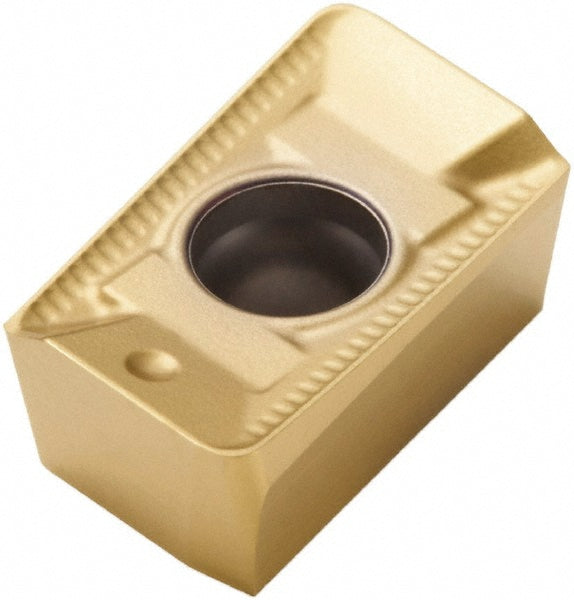

XCKX13T304R-ME10 Solid Carbide Insert, Grade T25M, TiCN - Seco 74028698

Seco

XCKX13T304R-ME10 Solid Carbide Insert, Grade T25M, TiCN - Seco 74028698

MFR# 74028698ISO/ANSI# XCKX13T304R-ME10Cat# XCKX13T304R-ME10Series XCKX-13

$29.30List $37.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 74028698 is a XCKX13T304R-ME10 solid carbide indexable insert, grade T25M, TiCN coated.

Specifications

Ansi codeXCKX13T304R-ME10
Chip breakerME10
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR215.59-08
Cutting edge effective length0.5299
Cutting edge styleHoned
Hole diameter0.1378
Included angle degree90
Inscribed circle0.3118
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code13T304
Insert styleXCKX
Iso codeXCKX13T304R-ME10
Length0.5299
Length range0.5000 to 0.6000
Manufacturers catalog numberXCKX13T304R-ME10
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.5299
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle14
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3118
