Seco

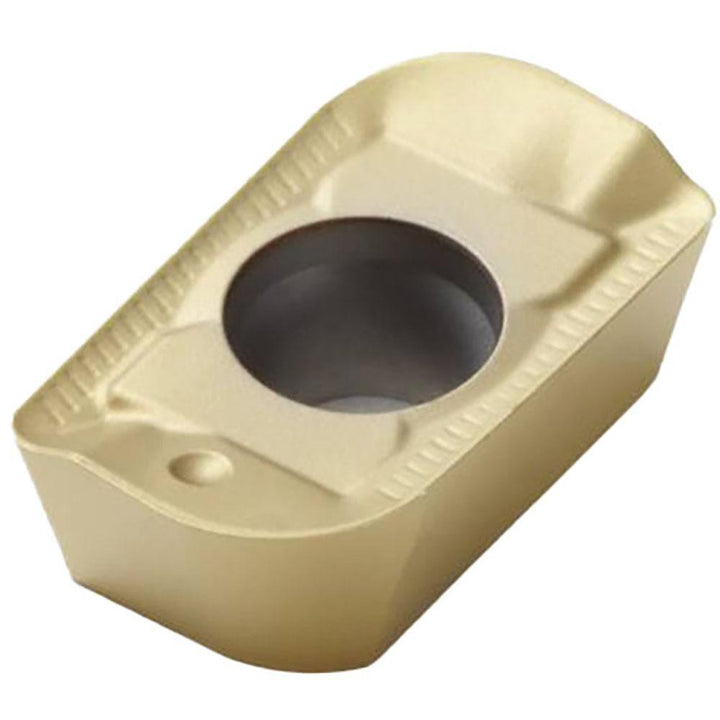

APKX1604PDR-ME12 Solid Carbide Insert, Grade F30M, TiAlN - Seco 74030637
MFR# 74030637ISO/ANSI# APKX1604PDR-ME12Cat# APKX1604PDR-ME12Series APKX-16
$28.80List $36.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF30M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74030637 is a APKX1604PDR-ME12 solid carbide indexable insert, grade F30M, TiAlN coated. Suited for stainless steel, steel.
Specifications
Ansi codeAPKX1604PDR-ME12
Chip breakerME12
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle0.3717
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKX
Iso codeAPKX1604PDR-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX1604PDR-ME12
Manufacturer gradeF30M
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle24
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width0.3717
