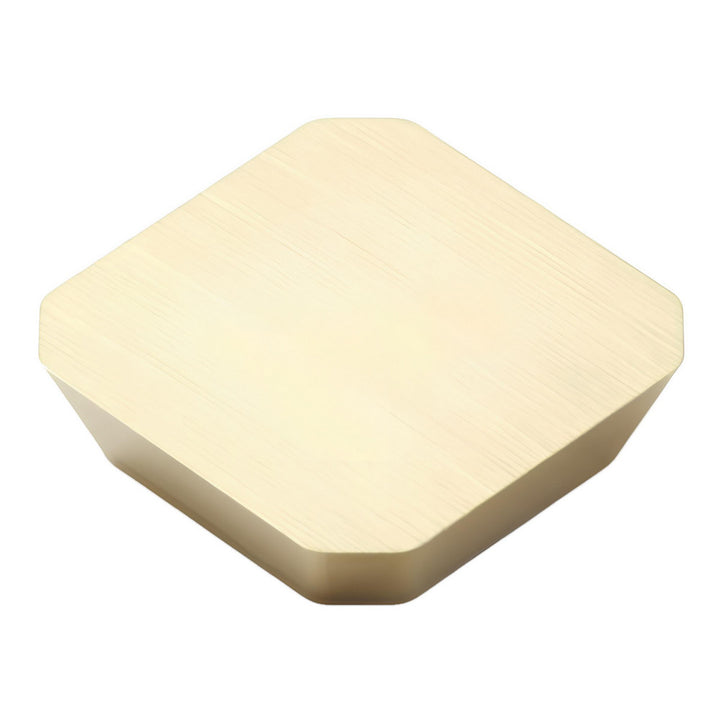

SEAN1203AFN-E12 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74030839

Seco

SEAN1203AFN-E12 Solid Carbide Insert, Grade F15M, TiAlN - Seco 74030839

MFR# 74030839ISO/ANSI# SEAN1203AFN-E12Cat# SEAN1203AFN-E12Series SEAN-12

$28.30List $36.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 74030839 is a SEAN1203AFN-E12 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi codeSEAN1203AFN-E12
Chip breakerE12
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR220.13-12
Cutting edge effective length0.5000
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1203
Insert styleSEAN
Iso codeSEAN1203AFN-E12
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEAN1203AFN-E12
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.3465
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle20.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
