Seco

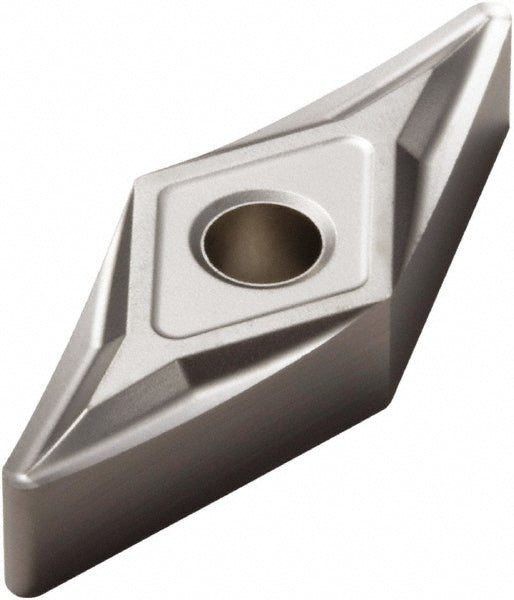

VNGM160404-MF1 Carbide Insert, Grade 890 - Seco 74030962
MFR# 74030962ISO/ANSI# VNGM160404Series VNGM-MF1
$48.41List $61.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
Grade890
MaterialCarbide
Description
The Seco 74030962 is a VNGM160404-MF1 carbide indexable insert, grade 890. Suited for superalloys & titanium.
Specifications
Ansi insert codeVNGM331
Ansi size code331
Chip breakerMF1
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNGM331F-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGM
Insert thickness in3/16
Iso codeVNGM160404-MF1
Iso insert codeVNGM160404
Iso size code160404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number74030962
Manufacturer grade890
Material gradeS10; S20
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
