Seco
Carbide Insert, Grade T60M, TiAlN - Seco 74034244
MFR# 74034244Series MM08
$101.15
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN
Description

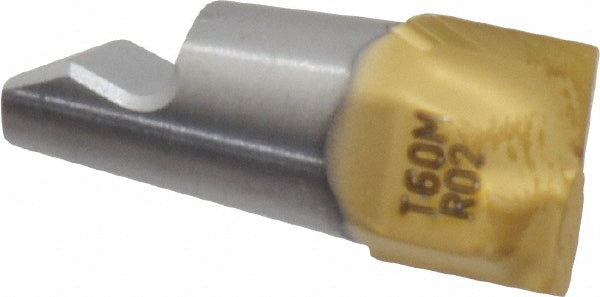

The Seco 74034244 is a carbide indexable insert, grade T60M, TiAlN coated.
Specifications
Chamfer angle0degree
ChipbreakerD03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0080
Cutting diameter0.3070
Cutting width0.3070in
Extension from holder in0.2670
Functional length0.2680
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.307T-R0.5
Lead angle90
Length of cut0.2130in
Manufacturers catalog number74034244
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.2130
Milling tip full descriptionMM08-0.307T-R0.5-D03
Milling tip styleMM08
Milling tip typeSlotting
Number of flutes2
Overall length0.2680in
StandardsANSI
Tool materialCarbide
