Seco
Carbide Insert, Grade T60M, TiAlN - Seco 74034245
MFR# 74034245Series MM08
$85.56
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN
Description

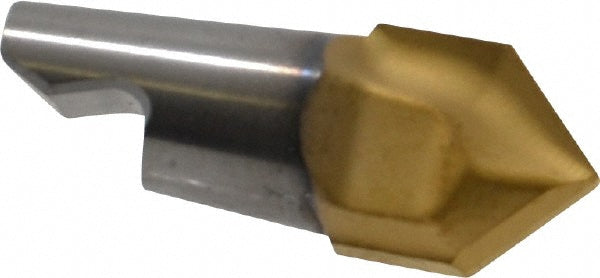

The Seco 74034245 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle45degree
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1750
Cutting diameter0.3150
Cutting width0.3150in
Extension from holder in0.3740
Functional length0.3740
Included angle degree90
Insert handRight Hand
Insert size0.315-C90
Lead angle45
Length of cut0.1490in
Manufacturers catalog number74034245
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.1490
Milling tip full descriptionMM08-0.315-C90-M03
Milling tip styleMM08
Milling tip typeChamfer
Number of flutes2
Overall length0.3740in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
