Carbide Insert, Grade T60M, TiAlN - Seco 74034249

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74034249

MFR# 74034249Series MM08

$85.56
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

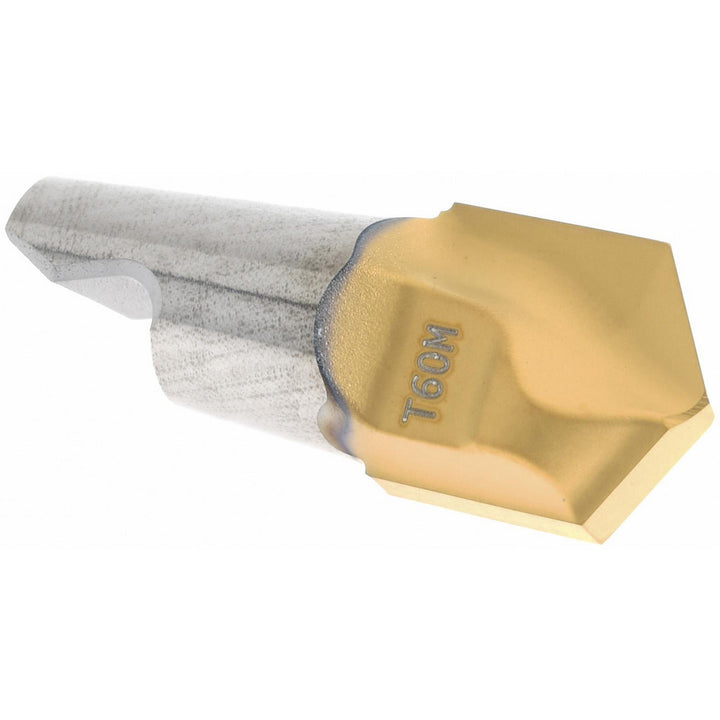

The Seco 74034249 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle60
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2440
Cutting diameter0.3150
Cutting width0.315
Extension from holder in0.3720
Functional length0.3720
Included angle degree120
Insert handRight Hand
Insert size0.315-C120
Lead angle60
Length of cut0.0850
Manufacturers catalog number74034249
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.0850
Milling tip full descriptionMM08-0.315-C120-M03
Milling tip styleMM08
Milling tip typeChamfer
Number of flutes2
Overall length0.372
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
