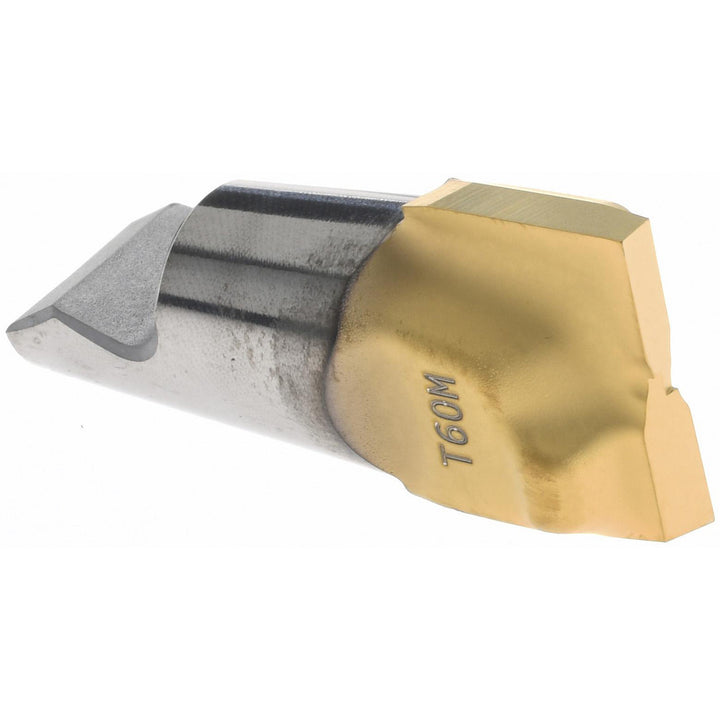

Carbide Insert, Grade T60M, TiAlN - Seco 74034268

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 74034268

MFR# 74034268Series MM12

$111.16
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 74034268 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerM04
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.5
Extension from holder in0.4430
Functional length0.4430
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.500
Lead angle90
Length of cut0.3660
Manufacturers catalog number74034268
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.3660
Milling tip full descriptionMM12-0.500-M04
Milling tip styleMM12
Milling tip typeSlotting
Number of flutes2
Overall length0.443
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
