Seco
Carbide Insert, Grade T60M, TiAlN - Seco 74034269
MFR# 74034269Series MM12
$111.16
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN
Description

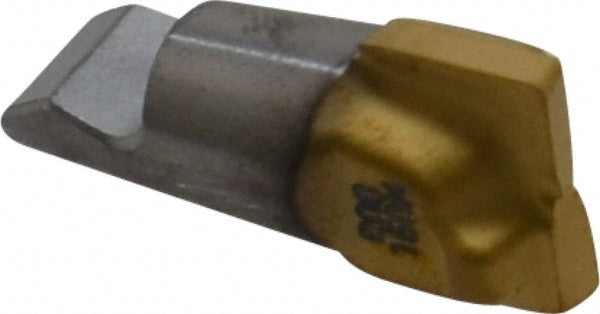

The Seco 74034269 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerMD05
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0310
Cutting width0.5000in
Extension from holder in0.4420
Functional length0.4420
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.500-R2
Lead angle90
Length of cut0.3660in
Manufacturers catalog number74034269
Manufacturer gradeT60M
Material gradeC5
Maximum depth of cut0.3660
Milling tip full descriptionMM12-0.500-R2-MD05
Milling tip styleMM12
Milling tip typeSlotting
Number of flutes2
Overall length0.4420in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
